CapitalBio® DNA Microarray Scanner LuxScan™10K

The CapitalBio LuxScan™ 10K microarray gene array scanner is a compact high performance system for microarray imaging and the analysis of DNA, protein, and cell arrays. CapitalBio DNA Microarray Scanner LuxScan™ 10K's advanced systems for optics, signal processing, and motion control provides superior scan accuracy and high detection sensitivity over a wide linear dynamic range. With the optimized signal acquisition and processing elements, this microarray instrument is ideal for profiling high-density spotted microarrays.

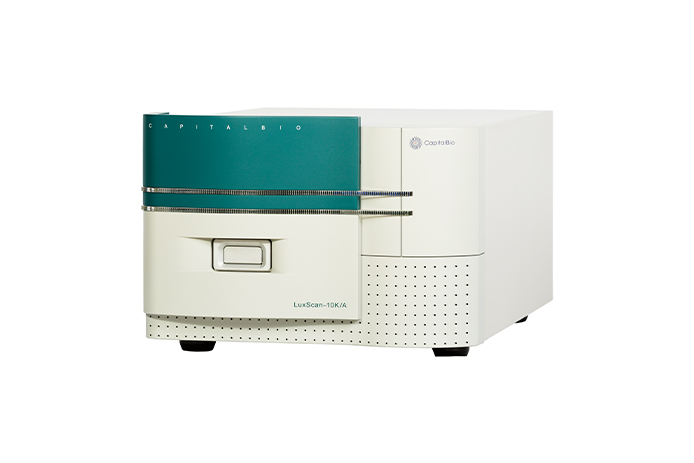

CapitalBio Microarray Scanner LuxScan™ 10K-A has two excitation lasers (532nm and 635nm) and scans sequentially, avoiding potential signal crosstalk for dual labeled arrays.

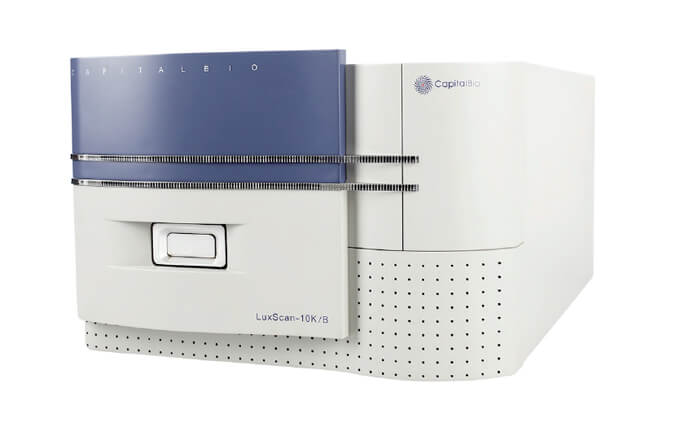

CapitalBio Microarray Scanner LuxScan™ 10K-B comes with either a 532nm or 635nm excitation laser. The microarray platform has a National Registration Certificate for Medical Devices and is suitable for diagnostic uses.

CapitalBio® Microarray Scanner LuxScan™10K
 gene array scanner microarray instrument

Features Of CapitalBio® DNA Microarray Scanner LuxScan™10K

  • Proprietary confocal optical design

  • Sequential scanning, without cross-talk between channels

  • High resolution and high sensitivity

  • Laser intensity and PMT are continuously adjustable

  • Flexibility in dye selection

  • Image quality & signal to noise ratio (SNR) superior to equivalent instruments

  • Remarkably compact, the bench-top footprint of 54 cm × 36 cm

  • Easy-to-use, powerful integrated acquisition, and analysis software - SpotData™ Pro 3.0 with three licenses for each instrument, and free upgrades for the first 5 years

  • Microarray Scanner Lux Scan is available in U.S. standard and European slide formats

  • Microarray Scanner LuxScan™ 10K Autofocus software allows users to easily readjust the altered focus due to rough shipment and for its long term maintenance

Benefits of CapitalBio® DNA Microarray Scanner LuxScan™10K

Powered by LuxScan technologies, the CapitalBio® DNA Microarray Scanner LuxScan™10K stands out as a cutting-edge gene array scanner capable of processing thousands of array samples daily. Widely embraced by prominent research institutions and frequently cited in various publications, this microarray scanner bolsters our extensive repertoire of genetic analysis assays, spanning from high-throughput genotyping to meticulous DNA methylation investigations. Our diverse array options are tailored to accommodate varying levels of SNP complexity and sample volume, ensuring flexibility to suit your specific throughput requirements.

The LuxScan™10K excels in scanning the entire Infinium array product family, delivering reliable data outputs to meet your analytical needs. This state-of-the-art microarray instrument sets the standard in the field, offering unmatched precision and efficiency. With capabilities ranging from DNA scanning to protein chip analysis, the LuxScan™10K emerges as the quintessential choice for researchers seeking advanced microarray scanning solutions. Explore the full potential of microarray technology with the LuxScan™10K and elevate your genetic research endeavors to new heights.

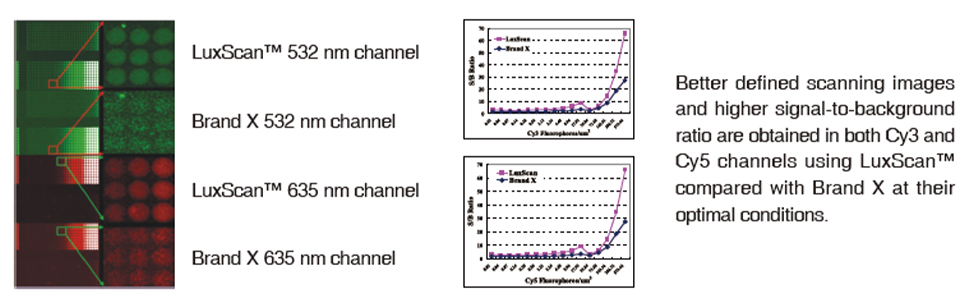

Comparison of the DNA Microarray Scanner LuxScan™10K-A with Popular Brand X

Comparison of the DNA Microarray Scanner LuxScan™10K-A with Popular Brand X

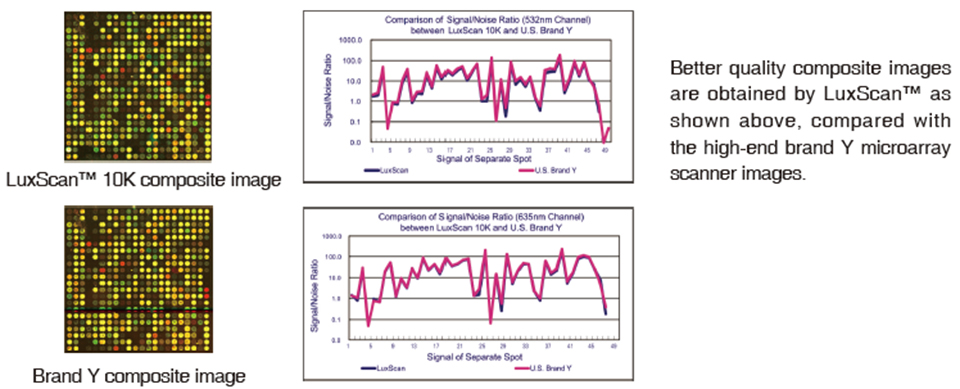

Comparison of the DNA Microarray Scanner LuxScan™10K with High-end Brand Y

Comparison of the DNA Microarray Scanner LuxScan™10K with High-end Brand Y

Specification Of CapitalBio® DNA Microarray Scanner LuxScan™10K

cnip Formats: Standard USA Slides(76.2士0.5)×(25.4土0.25)× (1.0土o.1) mm
or European slides versions(76.2士0.5)×(25.6土0.25)×(1.0土o.i1) mm
Maximum Scan Area22 mm x 72 mm
Excitation wavelength532 nm and/or 635 nm
Emission wavelength570土10 nm,675土10 nm (expandable to 6 types)
Applicable Fluorescence Dyescy3.cy5, etc.
scan Resolutionuser-selectable: 5,10,20,40 um
sensitivity0.1 chromophores / um2(cpsm)(cy3)
scan speed8 mins / chip (10 um resolution)
Dynamic Range104(16 bit)
Laser Power settings5-100 % continuously adjustable
PMT Adjustment450-950 continuously adjustable
Focus Distance土250 um
lmage File FormatTIFF.BMP, JPG, RAW
voltageAc l1o v/Ac 220v
Power75 watts
size (w x D*H)360 mm x 540 mm x 220 mm (14.2 in x 21.3 in x 8.7 in)
weight40 kg (88 lb)

CapitalBio® DNA Microarray Scanner Uses
CapitalBio® DNA Microarray Scanner Uses

  • The DNA Luxscan 10k microarray scanner operates by converting the processed gene chip into a digital image, enabling a detailed examination of gene expression.

  • This digital image is then analyzed using specialized software, which is a key component of the life sciences instruments provided by CapitalBio Technology.

  • The software is designed to accurately identify and analyze the gene expression data captured in the image, providing researchers with valuable insights.

  • The DNA Luxscan 10k Microarray Scanner and the software are used in conjunction with the gene chip, creating a comprehensive system for gene expression analysis.

  • This system is primarily used in the field of life sciences, where it plays a crucial role in understanding gene regulation and the mechanisms of various diseases.

  • The Luxscan 10k microarray scanner is capable of processing multiple gene chips simultaneously, enhancing efficiency and productivity in the laboratory.

  • The user-friendly interface and easy-to-use software make the DNA Microarray Scanner accessible to researchers of all levels of expertise.
