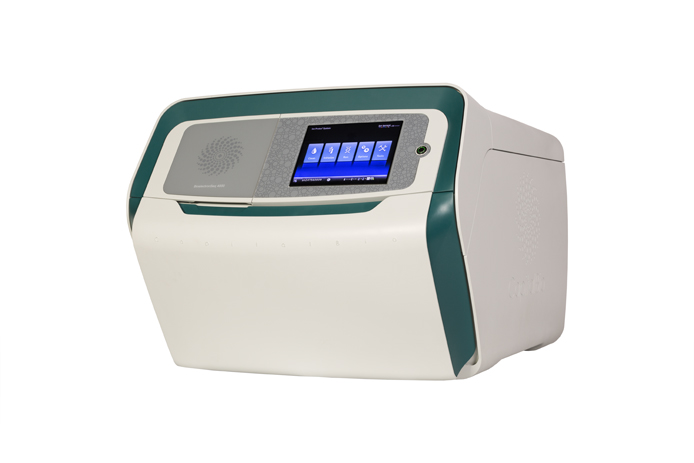

CapitalBio®BioelectronSeq 4000 Sequencer

CapitalBio®BioelectronSeq 4000 Sequencer uses semiconductor chip sequencing technology in conjunction with clinical testing kits and automated analysis software to provide independent genetic testing in hospitals and medical labs.

The sequencer uses semiconductor sequencing technology to determine the base sequence in real-time by detecting the PH change caused by the H+ ion flow generated during DNA replication. It is appropriate for independent genetic testing in hospitals when combined with clinical testing kits and automated analysis software.


biochip company

Features of CapitalBio®BioelectronSeq 4000 Sequencer

1. Flexible sequencing throughput

The base sequence is determined using the cutting-edge semiconductor chip sequencing technique by monitoring the pH shift induced by the flow of H+ ions created during DNA replication in real-time. Depending on the type of chip you choose, you can generate anywhere from 10Gb to 60Gb of data with a single run, making it ideal for use in clinical testing laboratories.


2. Short sequencing time

The entire sequencing process can be completed more than three times a day in less than two hours, allowing laboratory staff to maximize their time and increase productivity.


3. Long sequencing reads length

Sequencing may detect cell-free DNA in peripheral blood with a read length of 200 bp on average and up to 300 bp at its maximum.


4. Strong scalability

In order to accommodate a wide range of sequencing read lengths and data throughputs, users need just select sequencing chips with varying throughputs rather than reworking their instruments' core hardware.


5. User-friendly interface

It's easy to use and master in a single day of training.


Specification of CapitalBio®BioelectronSeq 4000 Sequencer

Dimensionswidth *Depth*Height (cm):61.8*75.0*50.7 Weight transport case 91.7Kg; net weight 60Kg
Working environment (for indoor use only)Temperature:68-77°F(20-25 C); Humidity: 40-60%, noncondensing;Altitude:<6,500 ft (2,000 m)
Clearances: 12 in (30.5 cm) in rear; 4 in (10 cm) on left side; 4 in (10 cm) on right side; 4 in (10 cm)from front edge of bench to sequencer bezel; 36 in (90 cm) aisle in front of bench for operator access
Powervoltage: AC220V
current: 20A
Frequency: 50Hz Input Power: 110OVA
Gas supplyConnection:0.25 in one-key connection accessory
Pressure: 30 psi
Composition: nitrogen (grade 4.8,99.998% or better)
other connectionsEthernet: 1 GigE
USB: 2x USB 2.0
instrument computer hardwareProcessor: Dual 8-core intel R XeonSandy Bridge
Memory: 128 GB RAM
FPGA: Dual AlteraR Stratix@v
GPU processor: lx NVIDIA Tesla@ C2075
Storage: 11 TB(SSD and HDD)
Operating system: Ubuntu@11.10
