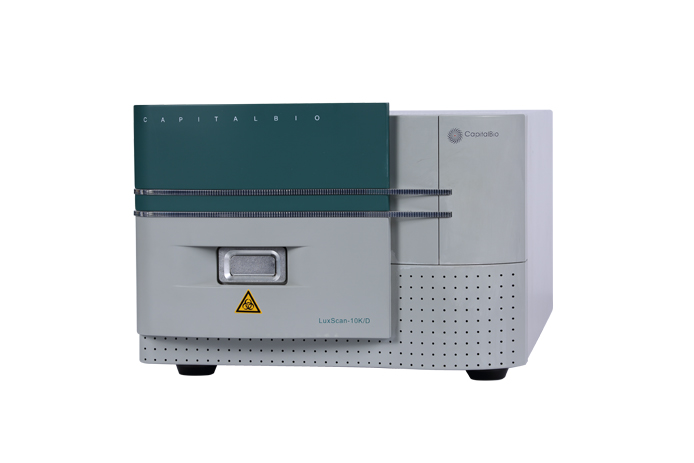

CapitalBio® Microarray Scanner LuxScan™10K/D

CapitalBio® Microarray Scanner LuxScan™10K/D, a novel optical system design based on the laser confocal principle, improves detection sensitivity and is suitable for dual-color or single-color fluorescence detection and analysis of high, medium, and low-density biochips.

The LuxScan™10K/D optical system works on the laser confocal principle. It increases the sensitivity of detection and can be used for either single-color or dual-color fluorescence detection and analysis of high, medium, or low density biochips. Contact our biochip company for more information and the latest microarray scanner price!


chip seq service

Features of CapitalBio® Microarray Scanner LuxScan™10K/D

  • The first microfluidic in situ fluorescence scanner for detecting amplified nucleic acids

  • Two fluorescence detection channels can be monitored independently due to sequential scanning, and the laser intensity and PMT can be fine-tuned in real-time.

  • LuxScan10K/D has a much larger numerical aperture of 0.76 than the industry standard of 0.68. The amount of microarray scanner light that can be collected is directly related to the lens's numerical aperture.

How Does A CapitalBio® DNA Microarray Scanner LuxScan™10K/D Work?

The CapitalBio® LuxScan™10K microarray scanner utilizes a sophisticated technology called the laser confocal principle. This principle allows the scanner to achieve exceptional sensitivity in detecting fluorescence signals, making it a powerful tool for various microarray experiments.


  • Laser Illumination: A laser beam with a specific wavelength illuminates the microarray surface. This laser light excites the fluorescent molecules (fluorophores) that are attached to the target DNA or RNA samples bound to the microarray spots.

  • Confocal Scanning: The LuxScan™10K employs a confocal scanning system. This system focuses the laser beam onto a very small spot on the microarray. By precisely controlling the laser beam's focus point as it scans across the entire microarray surface, the scanner minimizes background noise and enhances the detection sensitivity of the fluorescent signals.

  • Fluorescence Detection: As the laser excites the fluorophores, they emit light at a longer wavelength (fluorescence). The LuxScan™10K utilizes high-sensitivity detectors to capture this emitted fluorescent light.

  • Signal Processing and Analysis: The captured fluorescence signals are then processed and analyzed by the scanner's software. The software measures the intensity of the fluorescence from each spot on the microarray, allowing researchers to quantify the amount of bound target molecules.


Specification of CapitalBio® Microarray Scanner LuxScan™10K/D


Chip sizeLength (74.85~75.00)mm/ Width(24.85~25.00)mm/Thickness(1.900~2.000)mm
Scan zone≥22×72mm, equipped with a customized scanning zone
Scanner resolutionOptions include 5um, 10um, 20um, and 40um resolutions.
Scan speed≤30s/cm2 (10um resolution)
Sensitivity≤0.1 fluorescent molecules/um2
Repeatability≥95%, CV≤10%
Weight≤40kg
Dimension (L×W×D)540mm×360mm×220mm



Benefits and Application of CapitalBio® Microarray Scanner LuxScan™10K/D

CapitalBio Technology’s LuxScan™10K/D Microarray Scanner, also known as a microarray reader, is a state-of-the-art tool designed for high-precision scanning of gene chips.

  • The LuxScan™10K/D operates by scanning gene chips and converting them into digital images, enabling detailed analysis of gene expression.

  • This microarray scanner is primarily used in the field of life sciences research, where it plays a crucial role in gene expression studies.

  • The LuxScan™10K/D is equipped with high-resolution scanning capabilities, allowing for accurate and detailed analysis of gene chips.

  • This feature makes the LuxScan™10K/D an invaluable tool for researchers studying gene regulation and the mechanisms of various diseases.

  • The scanner is also capable of processing multiple gene chips simultaneously, significantly enhancing efficiency and productivity in the laboratory.

  • The LuxScan™10K/D features a user-friendly interface and easy-to-use software, making it accessible to researchers of all levels of expertise.

  • The specialized software is designed to accurately identify and interpret gene expression patterns from the scanned images.
